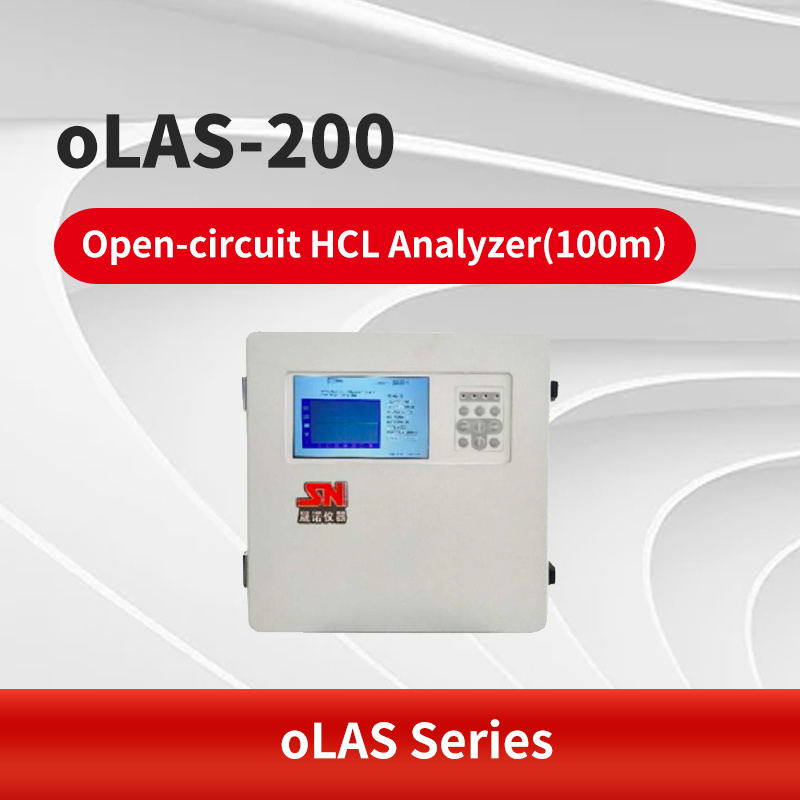

oLAS-200 Open-circuit HCL Analyzer(100m)

Classification:

Product Description:

The oLAS series open circuit laser gas analyzers are designed for open space ambient air quality monitoring, with a minimum detection lower limit up to ppb level within the optical range of hundreds of meters, especially suitable for monitoring ambient air pollutants (unorganized emissions) in industrial parks or production plants, such as HCL, HF, NH₃, H₂S and other gases. Compared with the extraction system, the open laser gas analyzer realizes the real sense of ambient air monitoring at the field boundary.
Inquiry

Product Details


The oLAS series open circuit laser gas analyzers are designed for open space ambient air quality monitoring, with a minimum detection lower limit up to ppb level within the optical range of hundreds of meters, especially suitable for monitoring ambient air pollutants (unorganized emissions) in industrial parks or production plants, such as HCL, HF, NH3, H2S and other gases. Compared with the extraction system, the open laser gas analyzer realizes the real sense of ambient air monitoring at the field boundary.



Product Features

• Size: 3 50*350*200mm

• Weight: 8kg

• Power supply: AC220V earth 10%V, 50Hz+1Hz

•​​​​​​​ Installation: wall-mounted

•​​​​​​​ Ambient temperature: -15°C~ +50°C

•​​​​​​​ Ambient humidity: ≤85%

•​​​​​​​ Atmospheric pressure: 86.0kPa~ 106.0kPa

•​​​​​​​ Measurement method: open long range TDLAS

•​​​​​​​ Laser type: semiconductor laser

•​​​​​​​ Maximum light range:≤500m

•​​​​​​​ Measurement error:≤2%FS

•​​​​​​​ Response time:≤2s

•​​​​​​​ Communication mode: RS485/MODBUS RTU protocol

•​​​​​​​ Repeatability:≤1%FS

•​​​​​​​ Output interface: 4-20mA analog signal output

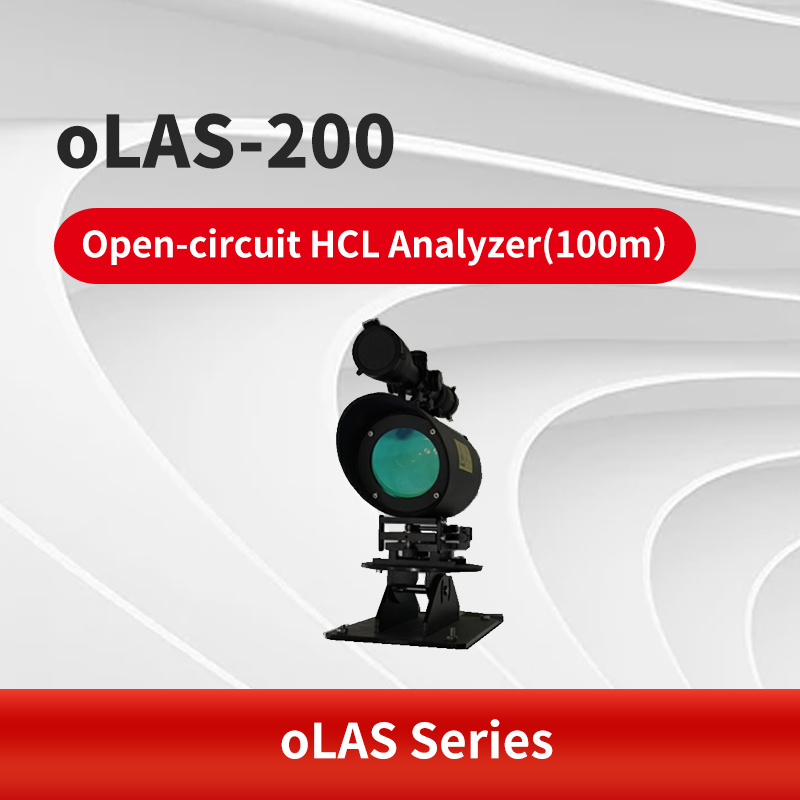

Laser transceiver

•​​​​​​​ Size: 365*140mm*140mm

•​​​​​​​ Weight: 3kg

•​​​​​​​ Sighting telescope: 3/9*1 6 sighting telescope



Laser reflection end

•​​​​​​​ Size: 200* 200* 260mm

•​​​​​​​ Weight: 1.5kg

• Reflector: Choose angle reflector or reflector array according to the detection distance
