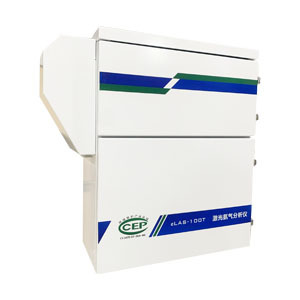

eLAS-T Series Laser Gas Analysis System

Classification:

Product Description:

The eLAS-T series of laser gas analyzers uses an integrated in-situ extraction measurement method, which integrates a high-temperature sampling probe and a high-temperature detection cell. The high temperature detection cell adopts the Heliot optical cell structure to achieve high precision gas detection. The sampling pipeline and sample gas sampling transmission process in the traditional extraction system are cancelled, and the sampling loss is reduced by directly installing on the flue. The system is highly integrated, not limited by the installation point and working conditions, and the measurement sensitivity and resolution are high. On-line calibration can be realized to ensure high precision and reliability of gas monitoring. Multi-point measurement of the measured gas can also be achieved according to customer requirements.
Inquiry

Product Details


eLAS系列

Product Features

• Heliot light cell structure, accurate measurement

• In-situ measurement to solve the problem of sampling loss

• The whole process of high temperature to solve the problem of ammonium salt crystallization

• Integrated body, compact structure, easy installation and maintenance

• Integrated oxygen concentration and humidity measurement to provide dry base condition values



Typical Applications

• Chemical production process control

• CEMS ammonia emission monitoring

• Waste incineration for power generation

• Ammonia storage and pipeline concentration monitoring

• SCR/SNCR denitration process control

• Ultra-low emissions in the cement industry



Performance Parameters

Model

Gas

Detection range

Resolution

Response time

Drift

eLAS-100T

NH3

0-10mg/m3

0.01ppm

≤10s

≤1%FS 7d

eLAS-200T

HCL

0-100mg/m3

0.1mg/m3

≤10s

≤1%FS 7d

eLAS-300T

HF

0-5mg/m3

0.01mg/m3

≤10s

≤1%FS 7d



Functional parameters

Warm-up

30min

Digital Output

RS232/485

Analog Output

4-20mA max. load 750Ω

Power supply

AC100-240V

47-63Hz/1.5kVA

Alarm function

Concentration overlimit alarm, relay output alarm, laser temperature abnormal alarm



Environmental parameters

 Light  length

5-10m

Sample gas temperature

≤800℃

Sample gas pressure

Atmospheric pressure ±5kPa

Sampling flow rate

2-3L/min

Ambient temperature

-30-55℃

Sampling method

In-situ extraction

Blowdown air source

0.4-0.6MPa compressed air

Protection level

IP65

Probe box size

630(L)*230(W)*630(H)mm

Weight

45kg
