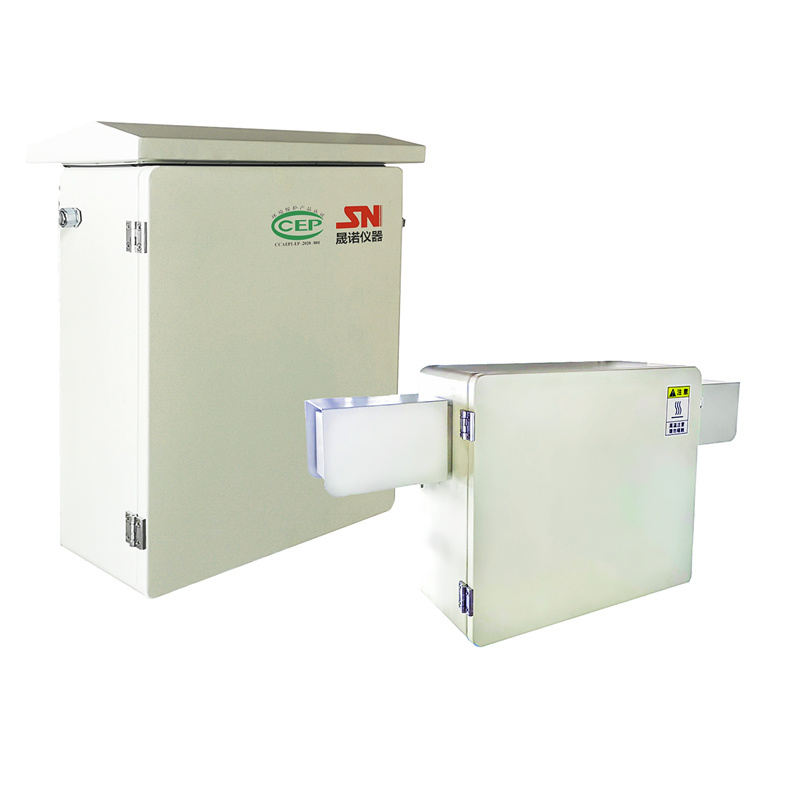

eLAS-S Series Laser Gas Analysis System

Classification:

Product Description:

The eLAS-S series laser gas analyzer adopts an in-situ extraction measurement method that integrates a high-temperature sampling probe and a high-temperature detection cell and is mounted directly on the flue. Since the sampling pipeline and the sample gas sampling transmission process in the traditional extraction system are eliminated, the flue gas sampling loss is minimized. The system overcomes the shortcomings of the in-situ measurement method, which is limited by the installation point and working conditions, while the high-temperature long-range detection cell improves the measurement sensitivity and resolution, and enables online calibration to ensure high accuracy and reliability of gas monitoring.
Inquiry

Product Details


eLAS系列

Product Features

• In-situ extraction installation method, no sampling tube sampling loss

• High-temperature detection cell and probe are integrated, resulting in smaller temperature gradients

• High-temperature coated gas chamber to prevent adsorption losses

• Customized protocols to meet dynamic environmental control requirements

• Full calibration, easy maintenance and low cost of use



Typical Applications

• CEMS ammonia emission monitoring

• Medical waste incineration treatment

• Chemical Process Control

• Waste-to-energy incineration

• Ammonia storage and pipeline concentration monitoring

• Pharmaceutical and chemical process control

• SCR/SNCR denitrification process control

• Cement plant waste coordination and treatment



Performance Parameters

Model

Gas

Detection range

Resolution

Response time

Drift

eLAS-100S

NH3

0-20ppm

0.1ppm

≤10s

≤1%FS 7d

eLAS-200S

HCL

0-200gm/m3

0.1mg/m3

≤10s

≤1%FS 7d

eLAS-300S

HF

0-10gm/m3

0.1mg/m3

≤10s

≤1%FS 7d



Functional parameters

Warm-up

60min

Digital Output

RS232/485

Analog Output

4-20mA max. load 750Ω

Power supply

AC100-240V

47-63Hz/1.5kVA

Relay Output

Load capacity: AC/DC 4V/1A; concentration over limit alarm

Abnormal transmittance alarm, abnormal laser temperature alarm



Environmental parameters

 Light  length

1m

Sample gas temperature

≤800℃

Sample gas pressure

Atmospheric pressure ±5kpa

Sampling flow rate

2-3L/min

Ambient temperature

-20-55℃

Sampling method

In-situ extraction

Blowdown air source

0.4-0.6Mpa compressed air

Protection level

IP65

Probe box size

750(L)*500(W)*220(H)mm

Weight

30kg
